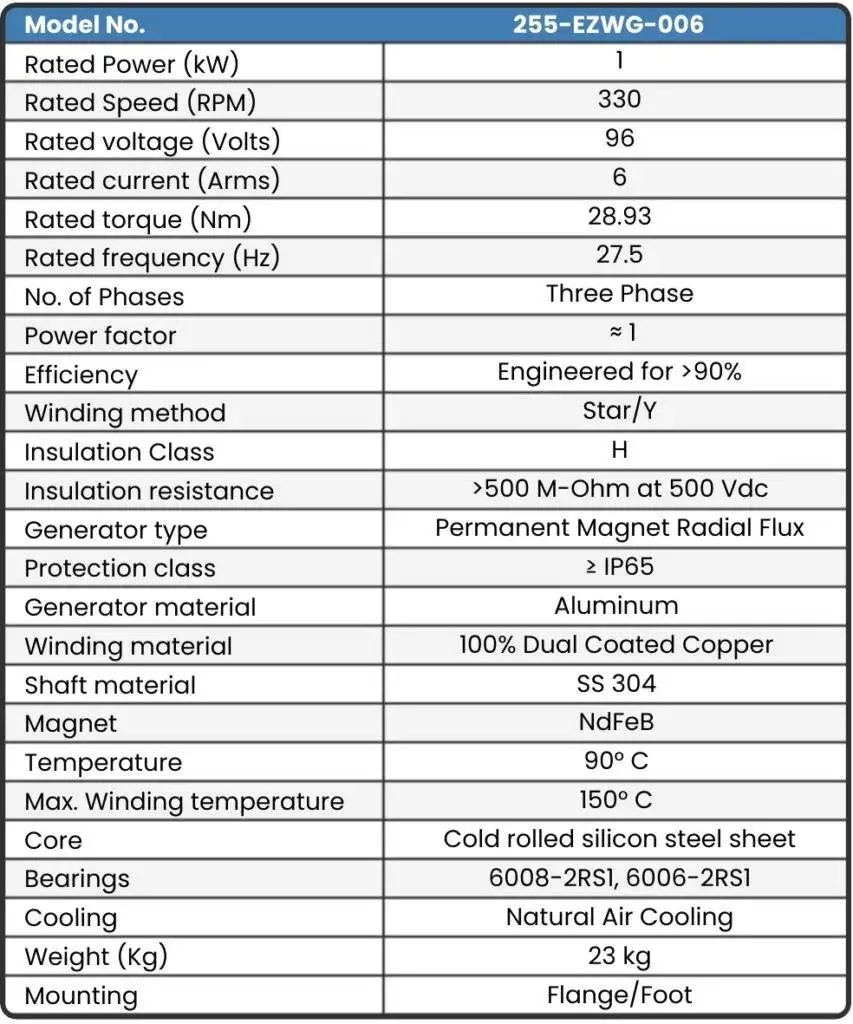

Technical Data Sheet: 255-EZ | 1kW 330RPM
Our 255-EZWG-006, the 1kW 330 RPM Wind Turbine Alternator has been used in small wind turbines for over 5 years. This unit can be configured with a vertical or horizontal-axis wind turbine turning at 330 RPM. The most popular configuration on our low RPM Permanent Magnet Alternator is an aluminium body with flange mounting on either the front or the back end covers which makes it a versatile choice for 1kW wind turbine applications.

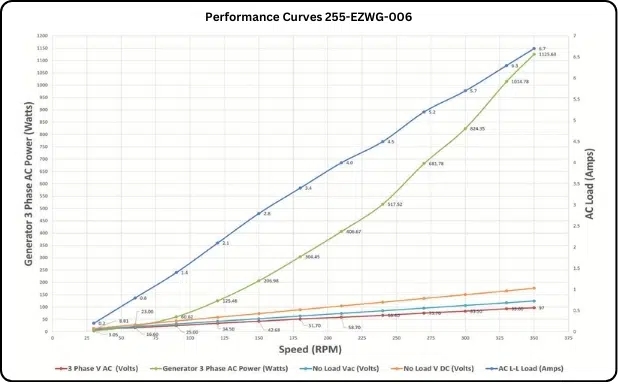

Performance Curves
Wind Turbine Alternator | Features
- Aluminum Housing and End Covers (Optional MS Body)
- SKF Bearing Assemblies
- Stainless Steel Shaft (Optional: Hardened EN24)
- H Class Insulation
- 1kW Wind Alternator has Cogging torque < 1Nm
- Proprietary Design to reduce cogging and increase efficiency
- High Grade Silicon Steel Laminations
- Highest Grade NdFeB Magnets
