Technical Data Sheet: 145-BZS48-012
Ratings at 3,000 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous — 12 Arms | 0.6 kW | 1.8 Nm |
| 60 minutes — 15 Arms | 0.7 kW | 2.2 Nm |
| 15 minutes — 24 Arms | 1.1 kW | 3.5 Nm |
Peak output is 1.7 kW and 5.6 Nm at 36 Arms.
Specifications
| Model number | 145-BZS48-012 |
|---|---|
| Frame size | 145 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 48 VDC |
| Rated power | 550 W |
| Peak power | 1.7 kW |
| Rated torque | 1.8 Nm |
| Peak torque | 5.6 Nm |
| Rated speed | 3,000 RPM |
| Rated / peak current | 12 Arms / 36 Arms |
| Rated frequency | 200 Hz |
| Torque constant | 0.15 Nm/Arms |
| Voltage constant | 0.153 Vrms/rad/s |
| Rotor inertia | 0.000328 kg·m² |
| Bearings | 6206-2Z/C3, 6206-2Z/C3 |
| Weight | 8 kg |
| Phases / power factor | Three phase / ≈ 1 |
| Efficiency | Designed for 93% |
| Winding | Star / Y, 100% copper |
| Insulation class | H, >500 MΩ at 500 VDC |
| Protection class | >IP64 |
| Magnet | NdFeB |
| Shaft | Hardened EN 24 |
| Core | Cold rolled silicon steel |
| Temperature sensor | PT 1000, 150 °C maximum winding |
| Cooling | Natural air, forced air optional |
| Mounting | Flange, foot |
1.8 Nm continuous at 3,000 RPM · 5.6 Nm peak · 145 frame
The 145-BZS48-012 is a compact 550 W 48 volt BLDC motor for light continuous duty at high speed. It holds 1.8 Nm at 3,000 RPM and will take 5.6 Nm in short bursts — three times its continuous torque from a motor that weighs 8 kg.
It is the smallest machine in the 145 range and the lightest 48 V motor Innotec builds. Torque holds flat to roughly 3,000 RPM before field weakening takes over, so the whole usable band sits below rated speed. Surface-mounted magnets, IP64, and naturally cooled with no fan or auxiliary supply.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.

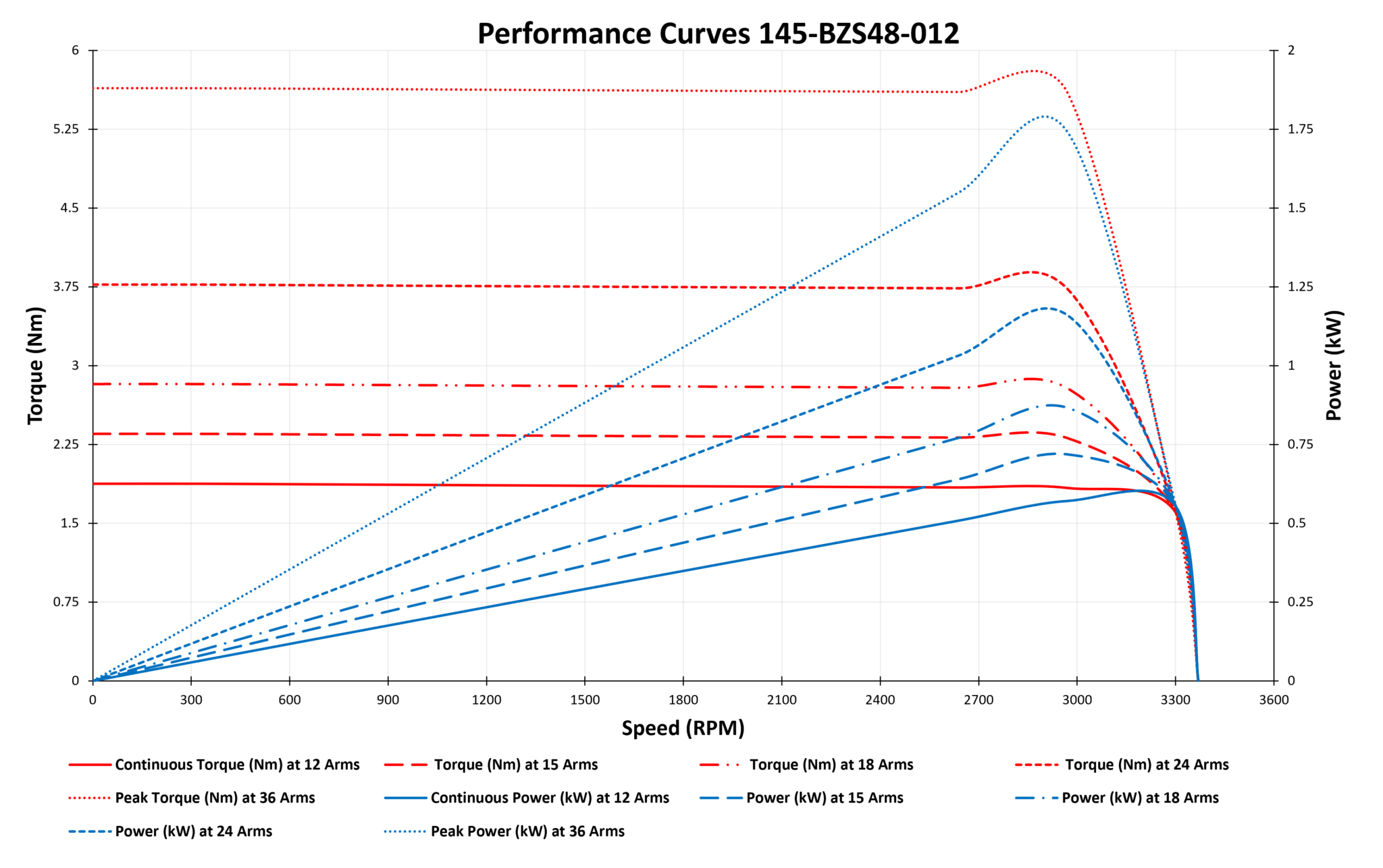

Performance Curves
Where this motor is used
- Small pumps and blowers on battery-powered equipment where weight matters more than torque
- Positioning and feed drives in light industrial automation
- Auxiliary drives on electric utility vehicles — fans, small hydraulics, actuators
- Portable and mast-mounted equipment where an 8 kg motor can be carried into place
Applications
Related ratings
145-BZS48-016 — 0.7 kW, 1.9 Nm at 3800 RPM
145-BZS48-008 — 0.3 kW, 1.9 Nm at 1800 RPM
All models: 48 volt motor range.
Custom windings, shaft and flange variants, and integrated controllers are available.
