Technical Data Sheet: 360-DZS48-300
Ratings at 1,600 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous — 300 Arms | 15.0 kW | 89.7 Nm |
| 15 minutes — 600 Arms | 29.4 kW | 175.4 Nm |
Peak output is 57.7 kW and 383 Nm at 1500 Arms.
Specifications
| Model number | 360-DZS48-300 |
|---|---|
| Frame size | 360 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 48 VDC |
| Rated power | 15 kW |
| Peak power | 57.7 kW |
| Rated torque | 89.7 Nm |
| Peak torque | 383 Nm |
| Rated speed | 1,600 RPM |
| Rated / peak current | 300 Arms / 1500 Arms |
| Rated frequency | 213.33 Hz |
| Torque constant | 0.299 Nm/Arms |
| Voltage constant | 0.286 Vrms/rad/s |
| Rotor inertia | |
| Bearings | 6215-2Z/C3, 6215-2Z/C3 |
| Weight | 59 kg |
| Phases / power factor | Three phase / ≈ 1 |
| Efficiency | Designed for 93% |
| Winding | Star / Y, 100% copper |
| Insulation class | H, >500 MΩ at 500 VDC |
| Protection class | >IP64 |
| Magnet | NdFeB |
| Shaft | Hardened EN 24 |
| Core | Cold rolled silicon steel |
| Temperature sensor | PT 1000, 150 °C maximum winding |
| Cooling | Natural air, forced air optional |
| Mounting | Flange, foot |
89.7 Nm continuous at 1,600 RPM · 383 Nm peak · 360 frame
The 360-DZS48-300 is a 15 kW 48 volt BLDC motor built for heavy transient loads. It holds 89.7 Nm continuously at 1,600 RPM and will reach 383 Nm at 1,500 Arms — more than four times its continuous torque.
That peak-to-continuous ratio of better than four to one is what sets it apart: it is designed around a controller that can deliver 1,500 Arms in short bursts, so the drive can be sized for the average load rather than the worst case. At 15 kW it is the highest-output motor in the 360 frame — the rest of that frame tops out at 10 kW — and at 1,600 RPM it turns more than three times faster than any other 360, which otherwise runs between 35 and 450 RPM.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.

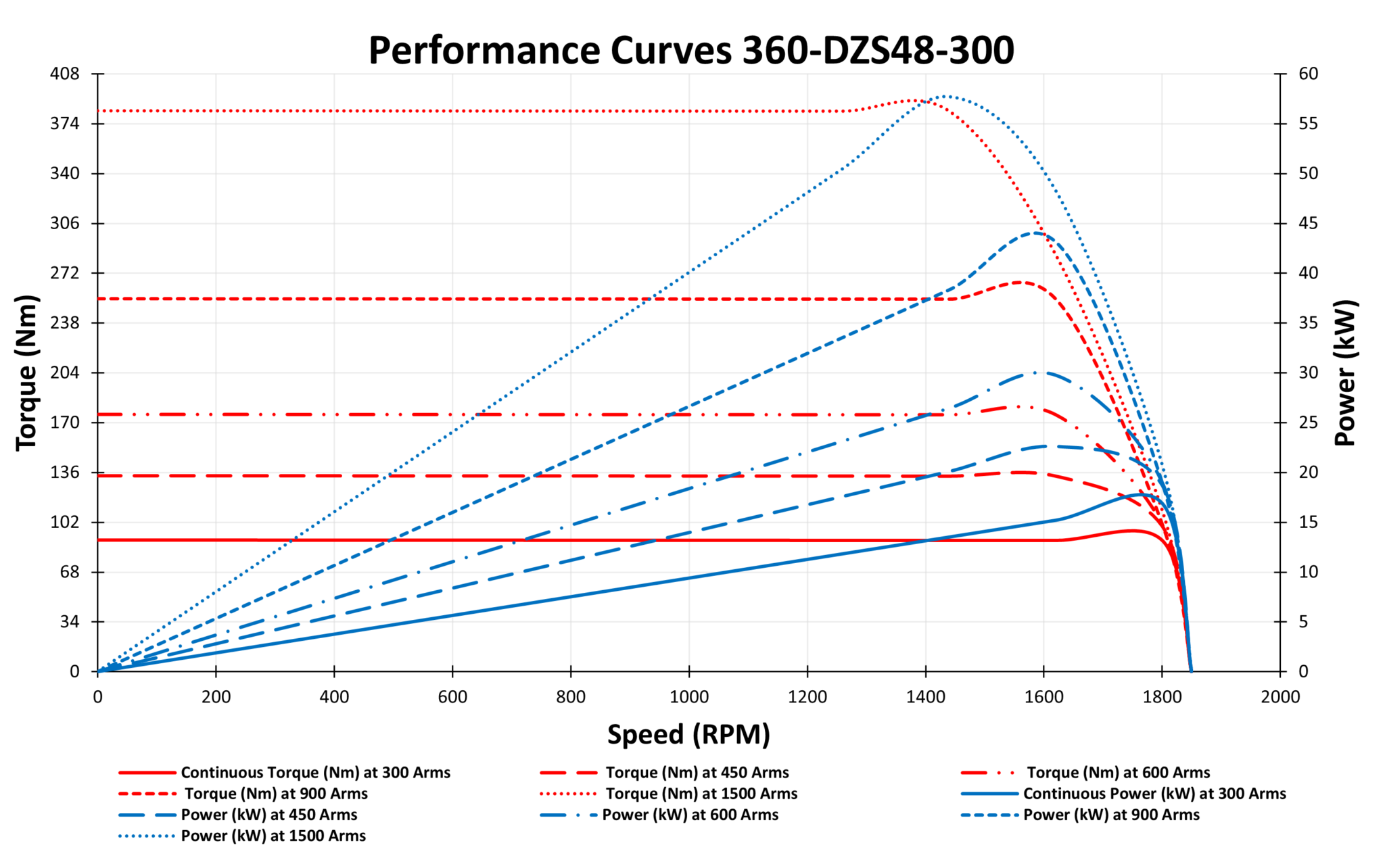

Performance Curves
Where this motor is used
- Traction drives on electric construction and mining equipment facing steep grades and breakout loads
- Large hydraulic power packs where the relief cycle demands short, heavy bursts
- Marine propulsion and thruster drives on 48 V battery systems
- Test and dynamometer duty needing high transient torque from a 48 V supply
Applications
Related ratings
360-FZI48-200 — 11 kW, 83.1 Nm at 1300 RPM
360-CZS48-200 — 10 kW, 65 Nm at 1500 RPM
All models: 48 volt motor range.
Custom windings, shaft and flange variants, and integrated controllers are available.
