Technical Data Sheet: 255-AHZS72-250
Ratings at 1,900 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous | 20.0 kW | 99.6 Nm |
| 60 minutes | 25.4 kW | 124.2 Nm |
| 15 minutes | 38.7 kW | 196.3 Nm |
Rated current is 250 Arms. Peak output is 53.2 kW and 282.7 Nm at 750 Arms.

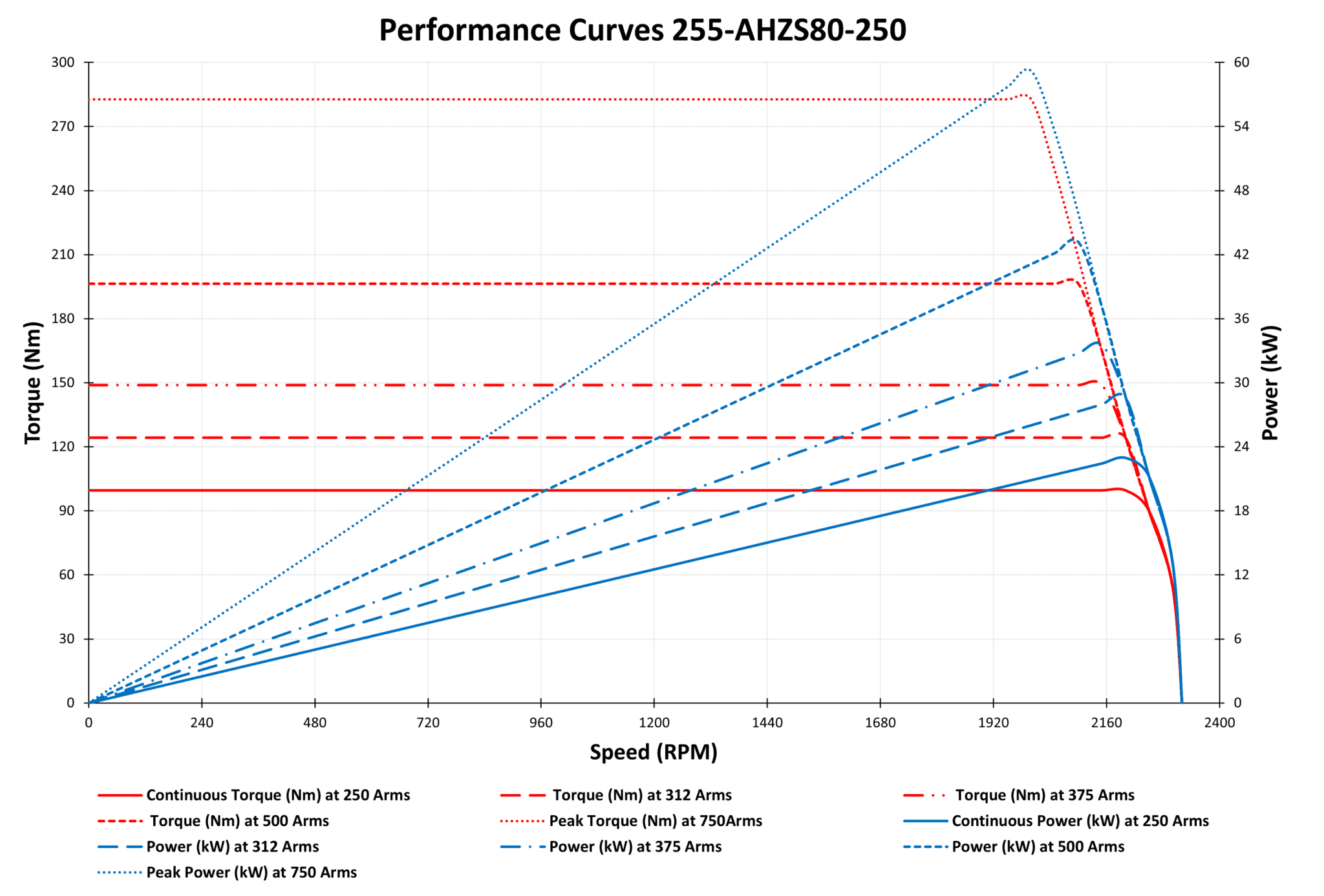

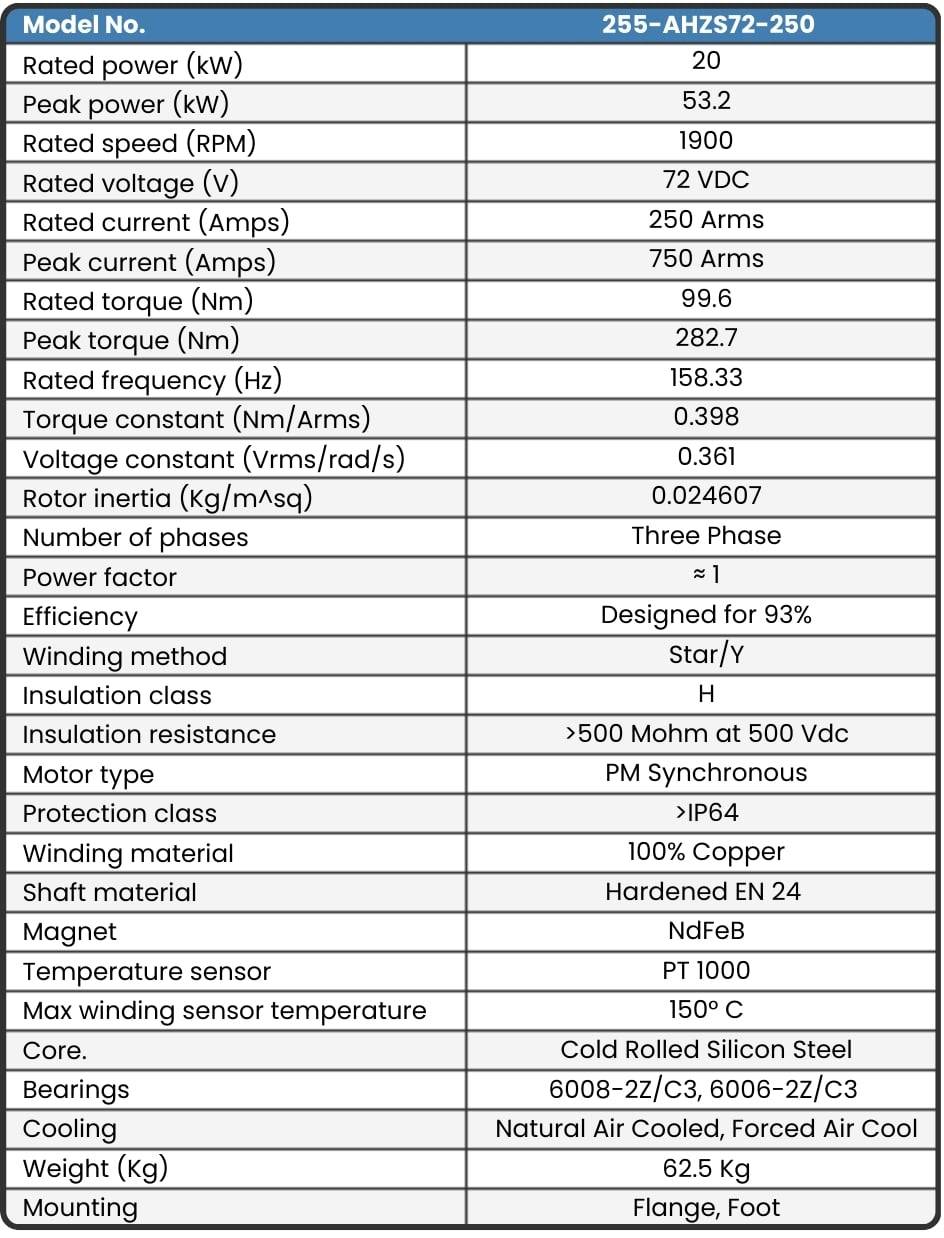

Specifications
| Model number | 255-AHZS72-250 |
|---|---|
| Frame size | 255 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 72 VDC |
| Rated power | 20.0 kW |
| Peak power | 53.2 kW |
| Rated torque | 99.6 Nm |
| Peak torque | 282.7 Nm |
| Rated speed | 1,900 RPM |
| Rated / peak current | 250 Arms / 750 Arms |
| Torque constant | 0.398 Nm/Arms |
| Efficiency | Designed for 93% |
| Insulation class | H |
| Protection class | >IP64 |
| Winding material | 100% Copper |
| Magnet | NdFeB |
| Temperature sensor | PT 1000 |
| Bearings | 6008-2Z/C3, 6006-2Z/C3 |
| Cooling | Natural Air Cooled, Forced Air Cool |
| Weight | 62.5 Kg |
| Mounting | Flange, Foot |
99.6 Nm continuous at 1,900 RPM · 282.7 Nm peak · 255 frame · surface-magnet rotor
The 255-AHZS72-250 is a 20.0 kW permanent magnet synchronous motor for a 72 V bus, rated 99.6 Nm at 1,900 RPM continuous. It holds 38.7 kW and 196.3 Nm for 15 minutes, and peaks at 53.2 kW. It weighs 62.5 Kg and mounts flange, foot.
The rotor is surface-magnet, which gives the higher torque per amp of the two rotor types and a simpler thermal picture under sustained load. Suited to hydraulic power units, traction drives and pump packages, where a single reduction stage is normal.
Ratings are published at three duty points rather than one headline figure. Size the motor so its continuous rating covers the average of the duty cycle and its 15-minute rating covers the worst peak — the full 72 V range has 63 models if this one sits slightly wrong.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.
Where this motor is used
- Hydraulic power units on 72 V mobile and industrial equipment
- Traction drives through a single reduction stage
- Pump packages where continuous duty matters more than peak speed
- Compressors and industrial fans in the mid speed range
Applications
Related ratings
Next step down: 255-AZZI72-250 at 20.0 kW, next step up: 255-BZZI72-250 at 20.0 kW. Every 72 V model at this rating is compared on the 72V 20kW motors page. See also the 72V motor guide and the full PMSM range from 24 V to 565 V.
