Technical Data Sheet: 145-EZS48-016
Ratings at 1,500 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous — 16 Arms | 0.7 kW | 4.8 Nm |
| 60 minutes — 18 Arms | 0.9 kW | 6.0 Nm |
| 15 minutes — 32 Arms | 1.5 kW | 9.6 Nm |
Peak output is 2.3 kW and 14.4 Nm at 48 Arms.
Specifications
| Model number | 145-EZS48-016 |
|---|---|
| Frame size | 145 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 48 VDC |
| Rated power | 750 W |
| Peak power | 2.3 kW |
| Rated torque | 4.7 Nm |
| Peak torque | 14.4 Nm |
| Rated speed | 1,500 RPM |
| Rated / peak current | 16 Arms / 48 Arms |
| Rated frequency | 100 Hz |
| Torque constant | 0.293 Nm/Arms |
| Voltage constant | 0.305 Vrms/rad/s |
| Rotor inertia | 0.00079149 kg·m² |
| Bearings | 6206-2Z/C3, 6206-2Z/C3 |
| Weight | 11 kg |
| Phases / power factor | Three phase / ≈ 1 |
| Efficiency | Designed for 93% |
| Winding | Star / Y, 100% copper |
| Insulation class | H, >500 MΩ at 500 VDC |
| Protection class | >IP64 |
| Magnet | NdFeB |
| Shaft | Hardened EN 24 |
| Core | Cold rolled silicon steel |
| Temperature sensor | PT 1000, 150 °C maximum winding |
| Cooling | Natural air, forced air optional |
| Mounting | Flange, foot |
4.8 Nm continuous at 1,500 RPM · 14.4 Nm peak · 145 frame
The 145-EZS48-016 is a 750 W 48 volt BLDC motor built for steady mid-speed work with room to overload. It holds 4.7 Nm at 1,500 RPM and will produce 14.4 Nm at 48 Arms, three times continuous.
Against the 145-EZS48-020, which shares the same rotor and the same 4.7 Nm continuous rating, this winding trades speed for current: 1,500 RPM on 16 Arms rather than 1,900 RPM on 20 Arms. Pick it where the controller is current-limited or the driven load does not need the extra speed.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.

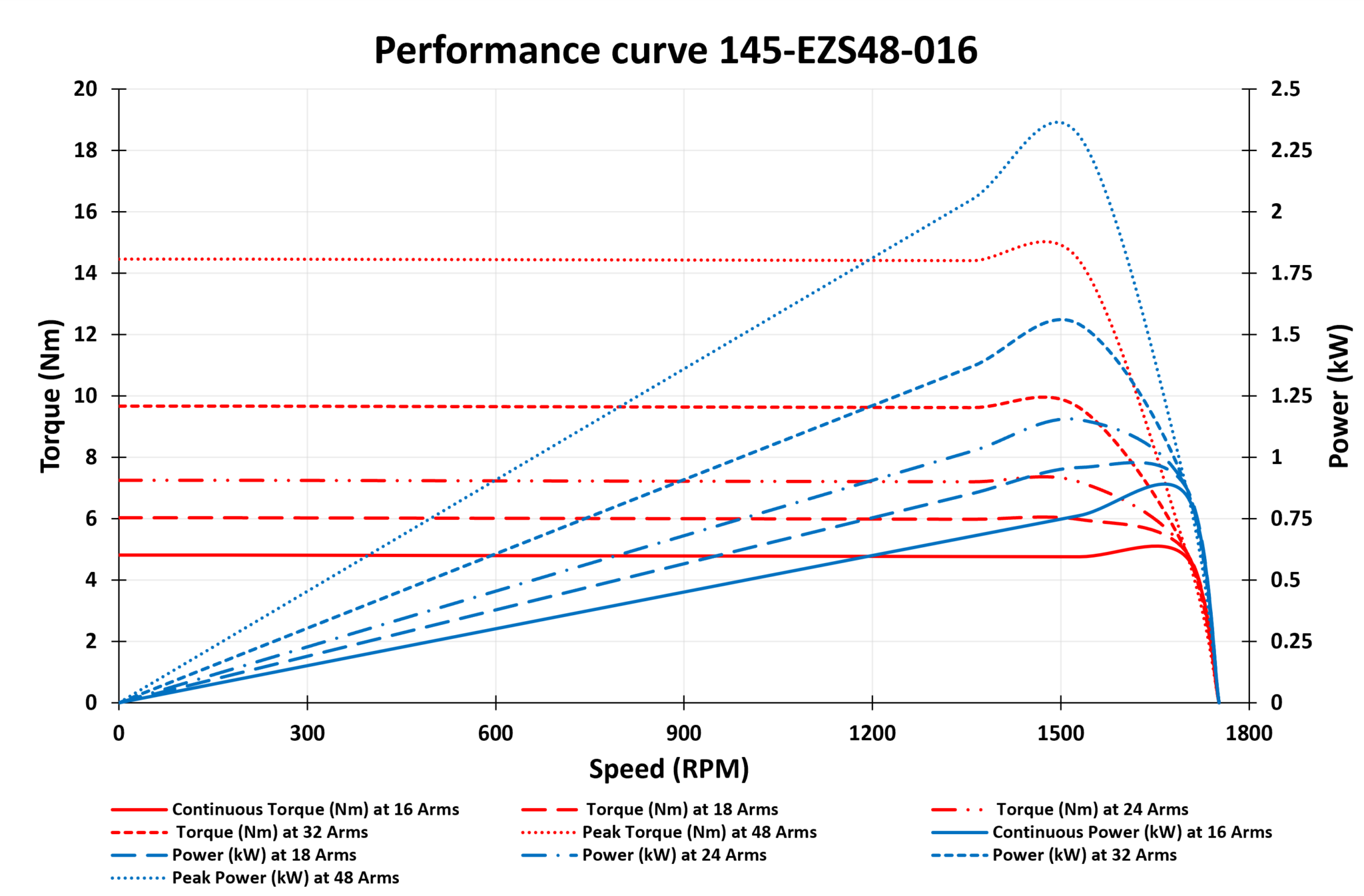

Performance Curves
Where this motor is used
- Conveyor and roller drives running continuously at fixed speed
- Pump and fan drives on 48 V battery systems
- Light traction on indoor material handling equipment
- Machine axes where a 0.00079 kg·m² rotor keeps acceleration quick
Applications
Related ratings
145-FZS48-018 — 0.8 kW, 5.1 Nm at 1600 RPM
145-EZS48-014 — 0.6 kW, 4.5 Nm at 1300 RPM
All models: 48 volt motor range.
Custom windings, shaft and flange variants, and integrated controllers are available.
