Technical Data Sheet: 145-EZS48-020
Ratings at 1,900 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous — 20 Arms | 0.9 kW | 4.7 Nm |
| 60 minutes — 25 Arms | 1.2 kW | 6.0 Nm |
| 15 minutes — 40 Arms | 1.9 kW | 9.5 Nm |
Peak output is 2.8 kW and 14.5 Nm at 60 Arms.
Specifications
| Model number | 145-EZS48-020 |
|---|---|
| Frame size | 145 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 48 VDC |
| Rated power | 900 W |
| Peak power | 2.8 kW |
| Rated torque | 4.7 Nm |
| Peak torque | 14.5 Nm |
| Rated speed | 1,900 RPM |
| Rated / peak current | 20 Arms / 60 Arms |
| Rated frequency | 126.66 Hz |
| Torque constant | 0.235 Nm/Arms |
| Voltage constant | 0.241 Vrms/rad/s |
| Rotor inertia | 0.00079149 kg·m² |
| Bearings | 6206-2Z/C3, 6206-2Z/C3 |
| Weight | 11 kg |
| Phases / power factor | Three phase / ≈ 1 |
| Efficiency | Designed for 93% |
| Winding | Star / Y, 100% copper |
| Insulation class | H, >500 MΩ at 500 VDC |
| Protection class | >IP64 |
| Magnet | NdFeB |
| Shaft | Hardened EN 24 |
| Core | Cold rolled silicon steel |
| Temperature sensor | PT 1000, 150 °C maximum winding |
| Cooling | Natural air, forced air optional |
| Mounting | Flange, foot |
4.7 Nm continuous at 1,900 RPM · 14.5 Nm peak · 145 frame
The 145-EZS48-020 is a 900 W 48 volt BLDC motor for work that needs speed rather than torque. It holds 4.7 Nm continuously at 1,900 RPM and peaks at 14.5 Nm, and at 11 kg it delivers that from the smallest frame Innotec makes.
It shares its rotor and its 4.7 Nm continuous torque with the 145-EZS48-016 but is wound for more speed — 1,900 RPM at 20 Arms instead of 1,500 RPM at 16 Arms. Choose this one when the load is speed-limited and the controller has the current headroom.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.

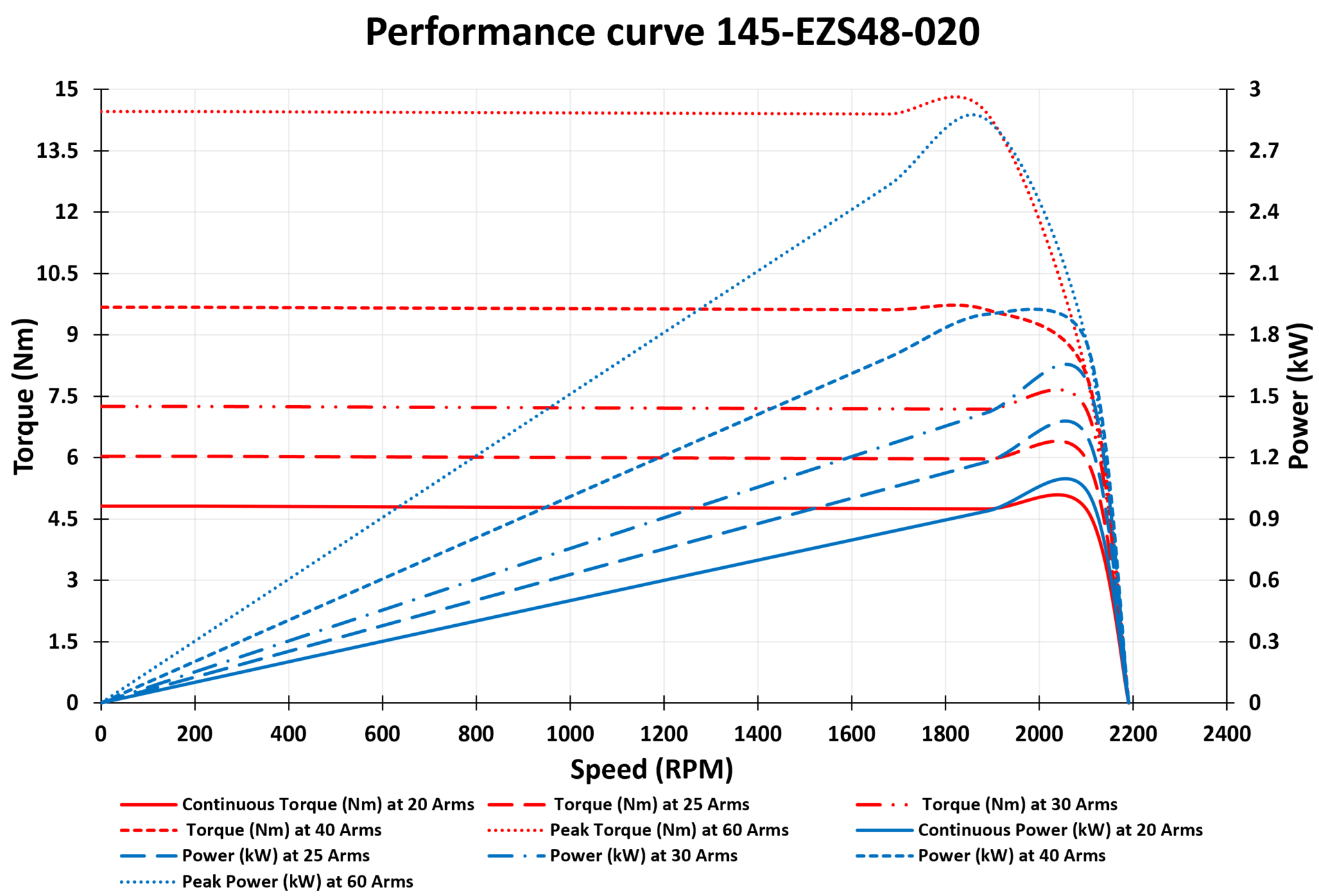

Performance Curves
Where this motor is used
- Centrifugal pumps and blowers, where output rises steeply with speed
- High-speed conveyor and sorting drives
- Compressor and vacuum pump drives on mobile equipment
- Test rigs and machine tools needing a light, quick-accelerating rotor
Applications
Related ratings
145-EZS48-025 — 1 kW, 4.5 Nm at 2300 RPM
145-FZS48-018 — 0.8 kW, 5.1 Nm at 1600 RPM
All models: 48 volt motor range.
Custom windings, shaft and flange variants, and integrated controllers are available.
