Technical Data Sheet: 145-AZZS72-040

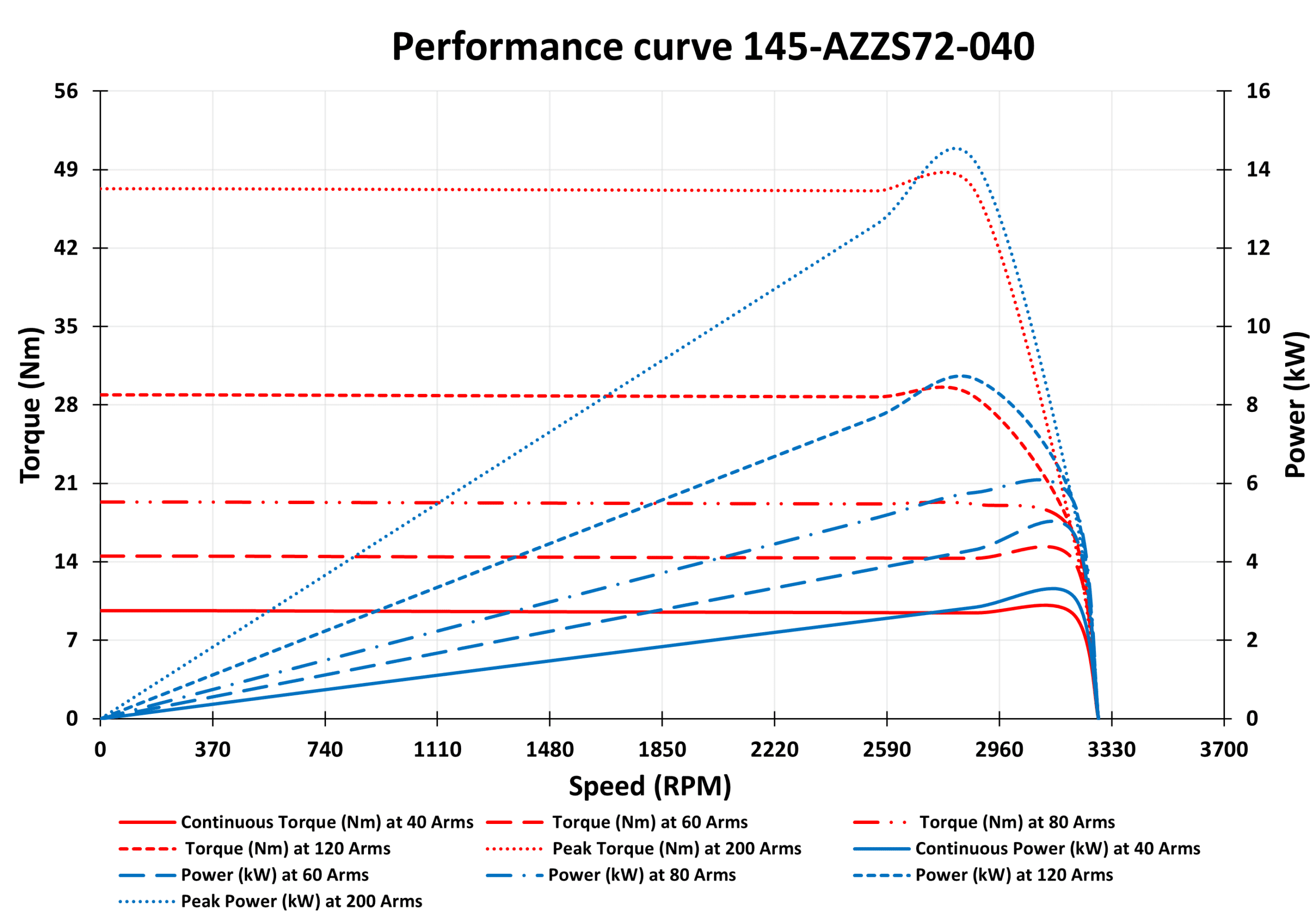

Ratings at 3,200 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous | 3.0 kW | 9.4 Nm |
| 60 minutes | 3.9 kW | 11.9 Nm |
| 15 minutes | 5.7 kW | 19.2 Nm |
Rated current is 40 Arms. Peak output is 14 kW and 47.2 Nm at 200 Arms.
Specifications
| Model number | 145-AZZS72-040 |
|---|---|
| Frame size | 145 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 72 VDC |
| Rated power | 3.0 kW |
| Peak power | 14 kW |
| Rated torque | 9.4 Nm |
| Peak torque | 47.2 Nm |
| Rated speed | 3,200 RPM |
| Rated / peak current | 40 Arms / 200 Arms |
| Torque constant | 0.235 Nm/Arms |
| Efficiency | Designed for 93% |
| Insulation class | H |
| Protection class | >IP64 |
| Winding material | 100% Copper |
| Magnet | NdFeB |
| Temperature sensor | PT 1000 |
| Bearings | 6206-2Z/C3, 6206-2Z/C3 |
| Cooling | Natural Air Cooled, Forced Air Cool |
| Weight | 13 Kg |
| Mounting | Flange, Foot |
9.4 Nm continuous at 3,200 RPM · 47.2 Nm peak · 145 frame · surface-magnet rotor
The 145-AZZS72-040 is a 3.0 kW permanent magnet synchronous motor for a 72 V bus, rated 9.4 Nm at 3,200 RPM continuous. It holds 5.7 kW and 19.2 Nm for 15 minutes, and peaks at 14 kW. It weighs 13 Kg and mounts by flange or foot.
The rotor is surface-magnet, which gives the higher torque per amp of the two rotor types and a simpler thermal picture under sustained load. Suited to geared traction, blowers and high-speed pump drives, where the reduction stage already exists and a compact motor matters more than shaft torque.
Ratings are published at three duty points rather than one headline figure. Size the motor so its continuous rating covers the average of the duty cycle and its 15-minute rating covers the worst peak — the full 72 V range has 63 models if this one sits slightly wrong.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.
Where this motor is used
- Centrifugal pumps and blowers, where delivered output rises steeply with shaft speed
- Compressor and vacuum pump drives on 72 V mobile and industrial equipment
- Geared traction where the reduction stage already exists
- Light, quick-accelerating axes where motor mass is a design constraint
Applications
