Technical Data Sheet: 145-ADZS72-050
Ratings at 2,700 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous | 3.5 kW | 12.4 Nm |
| 60 minutes | 4.5 kW | 15.8 Nm |
| 15 minutes | 7.3 kW | 25.3 Nm |
Rated current is 50 Arms. Peak output is 11 kW and 38 Nm at 150 Arms.

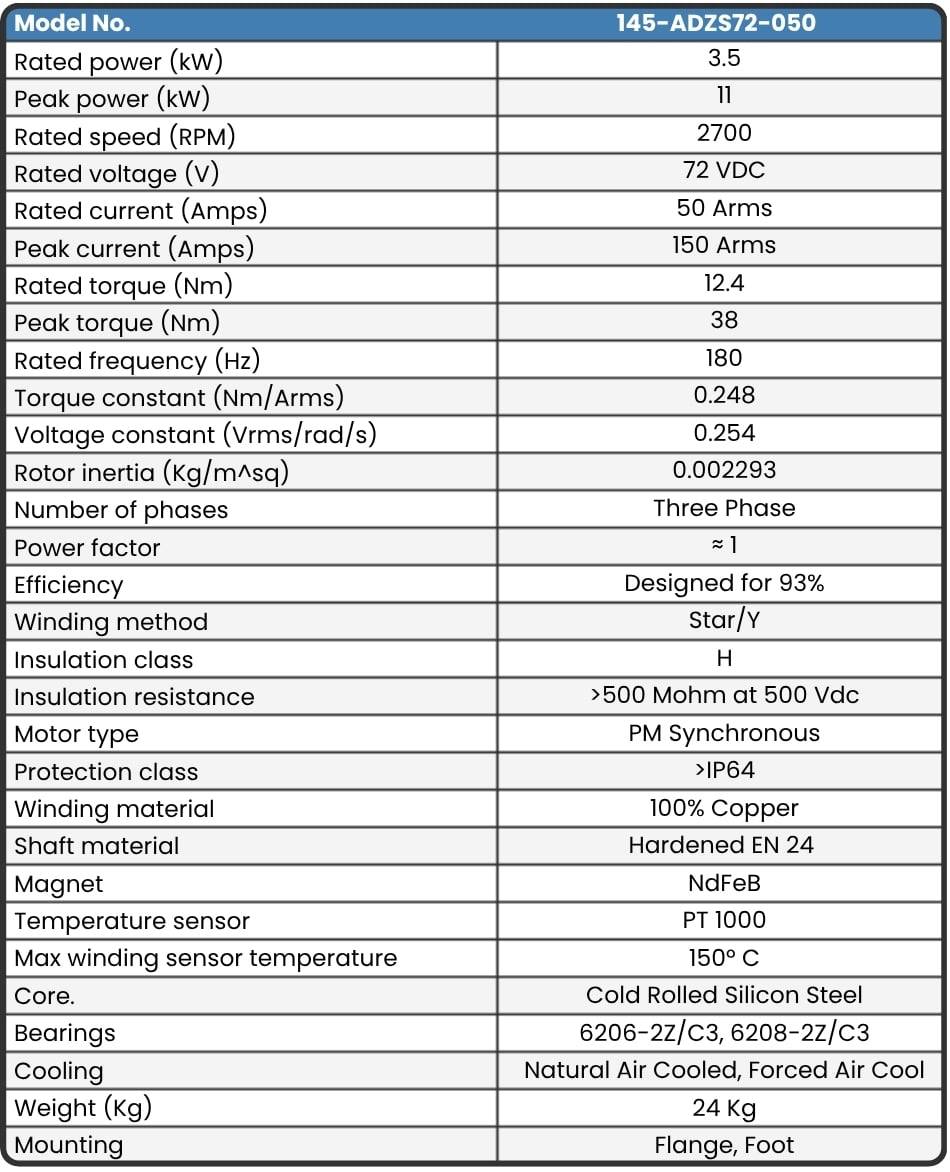

Specifications
| Model number | 145-ADZS72-050 |
|---|---|
| Frame size | 145 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 72 VDC |
| Rated power | 3.5 kW |
| Peak power | 11 kW |
| Rated torque | 12.4 Nm |
| Peak torque | 38 Nm |
| Rated speed | 2,700 RPM |
| Rated / peak current | 50 Arms / 150 Arms |
| Torque constant | 0.248 Nm/Arms |
| Efficiency | Designed for 93% |
| Insulation class | H |
| Protection class | >IP64 |
| Winding material | 100% Copper |
| Magnet | NdFeB |
| Temperature sensor | PT 1000 |
| Cooling | Natural Air Cooled, Forced Air Cool |
| Weight | 24 Kg |
| Mounting | Flange, Foot |
12.4 Nm continuous at 2,700 RPM · 38 Nm peak · 145 frame · surface-magnet rotor
The 145-ADZS72-050 is a 3.5 kW permanent magnet synchronous motor for a 72 V bus, rated 12.4 Nm at 2,700 RPM continuous. It holds 7.3 kW and 25.3 Nm for 15 minutes, and peaks at 11 kW. It weighs 24 Kg and mounts flange, foot.
The rotor is surface-magnet, which gives the higher torque per amp of the two rotor types and a simpler thermal picture under sustained load. Suited to geared traction, blowers and high-speed pump drives, where the reduction stage already exists and a compact motor matters more than shaft torque.
Ratings are published at three duty points rather than one headline figure. Size the motor so its continuous rating covers the average of the duty cycle and its 15-minute rating covers the worst peak — the full 72 V range has 63 models if this one sits slightly wrong.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.

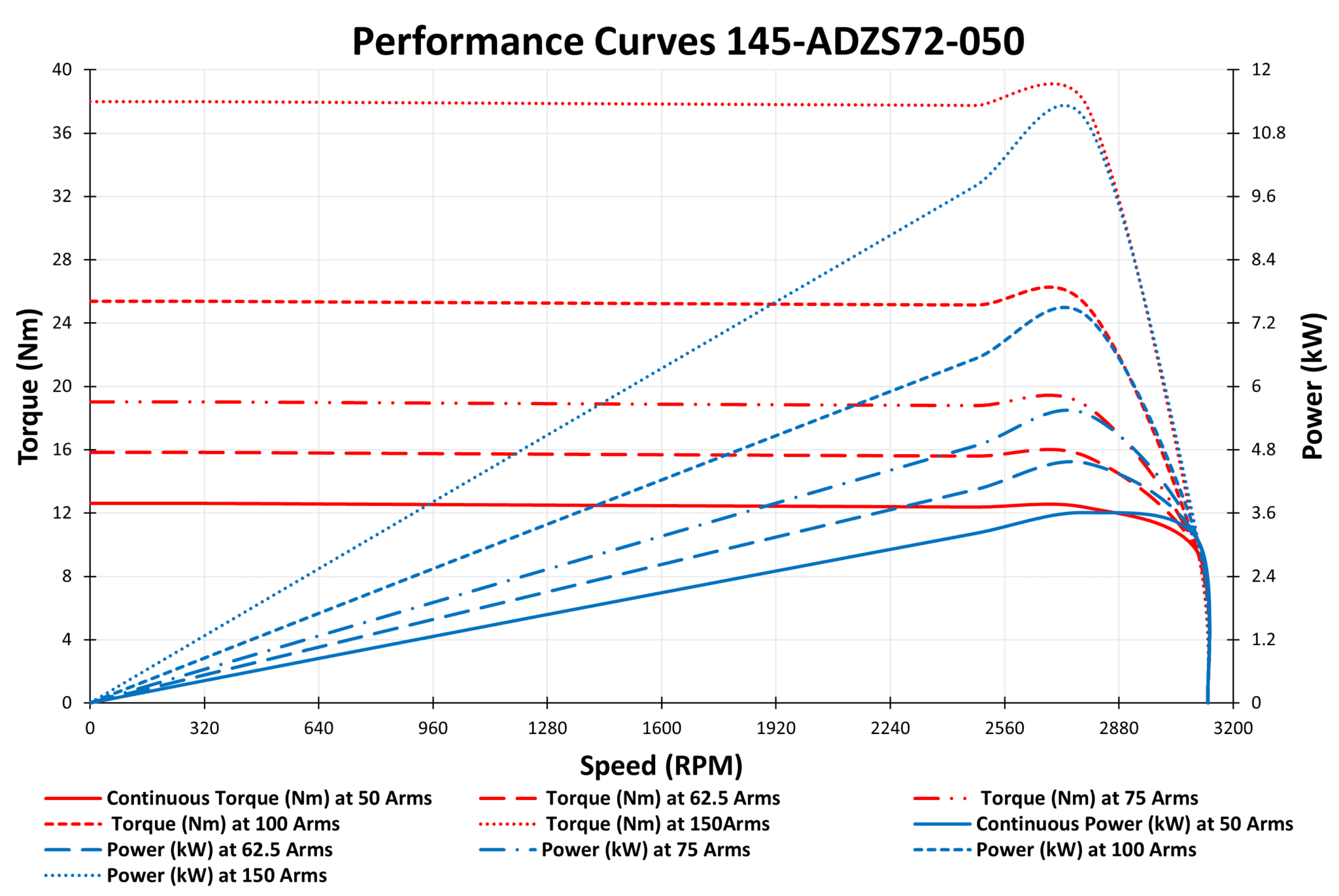

Performance Curves
