Technical Data Sheet: 255-EZS72-125
Ratings at 3,500 RPM
| Duty | Power | Torque |
|---|---|---|
| Continuous | 10.0 kW | 27.7 Nm |
| 60 minutes | 12.6 kW | 34.3 Nm |
| 15 minutes | 18.8 kW | 54.5 Nm |
Rated current is 125 Arms. Peak output is 25.7 kW and 78.5 Nm at 375 Arms.

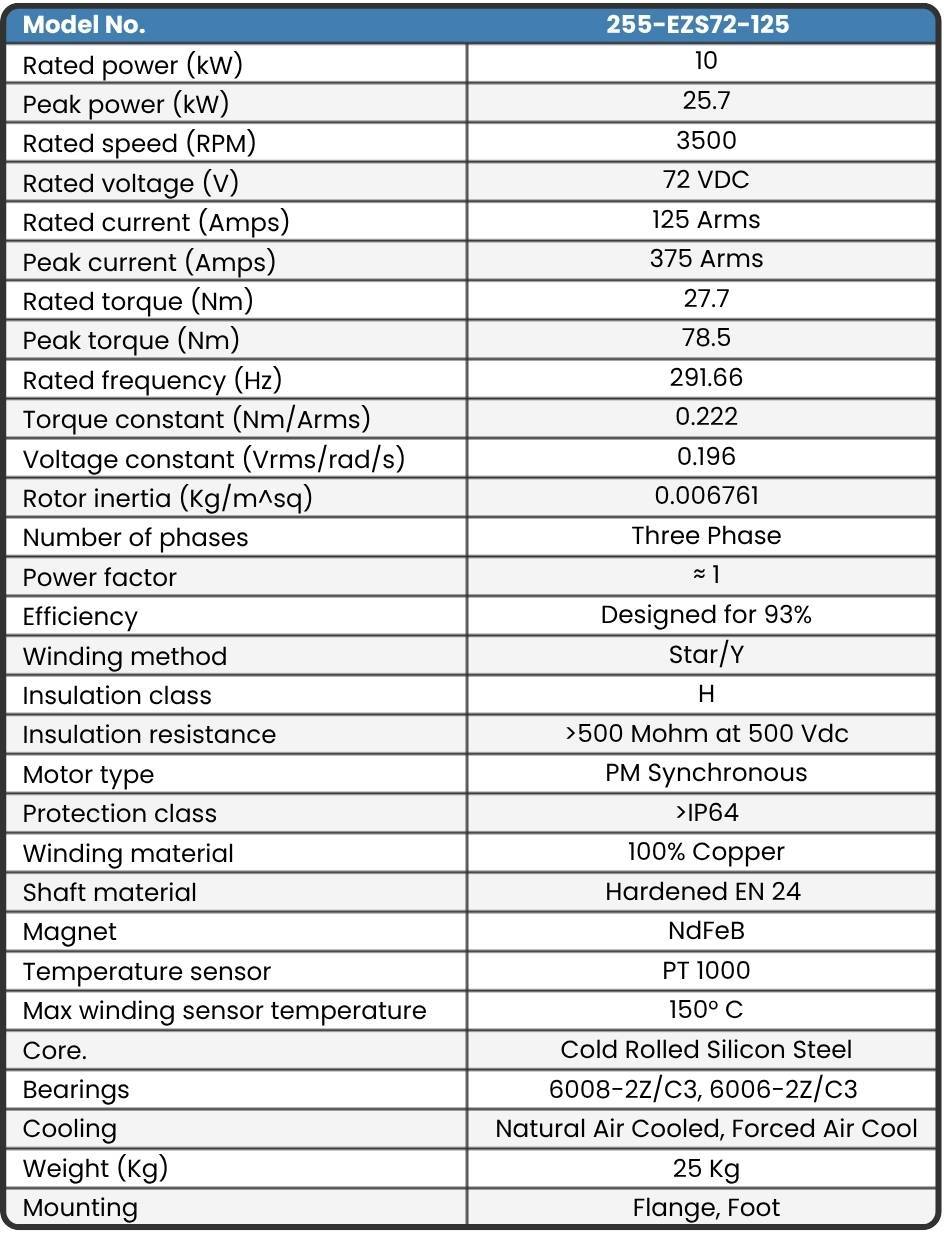

Specifications
| Model number | 255-EZS72-125 |
|---|---|
| Frame size | 255 |
| Motor type | PM synchronous, surface magnet |
| Rated voltage | 72 VDC |
| Rated power | 10.0 kW |
| Peak power | 25.7 kW |
| Rated torque | 27.7 Nm |
| Peak torque | 78.5 Nm |
| Rated speed | 3,500 RPM |
| Rated / peak current | 125 Arms / 375 Arms |
| Torque constant | 0.222 Nm/Arms |
| Efficiency | Designed for 93% |
| Insulation class | H |
| Protection class | >IP64 |
| Winding material | 100% Copper |
| Magnet | NdFeB |
| Temperature sensor | PT 1000 |
| Bearings | 6008 -2Z/C3, 6006-2Z/C3 |
| Cooling | Natural Air Cooled, Forced Air Cool |
| Weight | 25 Kg |
| Mounting | Flange, Foot |
27.7 Nm continuous at 3,500 RPM · 78.5 Nm peak · 255 frame · surface-magnet rotor
The 255-EZS72-125 is a 10.0 kW permanent magnet synchronous motor for a 72 V bus, rated 27.7 Nm at 3,500 RPM continuous. It holds 18.8 kW and 54.5 Nm for 15 minutes, and peaks at 25.7 kW. It weighs 25 Kg and mounts flange, foot.
The rotor is surface-magnet, which gives the higher torque per amp of the two rotor types and a simpler thermal picture under sustained load. Suited to geared traction, blowers and high-speed pump drives, where the reduction stage already exists and a compact motor matters more than shaft torque.
Ratings are published at three duty points rather than one headline figure. Size the motor so its continuous rating covers the average of the duty cycle and its 15-minute rating covers the worst peak — the full 72 V range has 63 models if this one sits slightly wrong.
Quality and compliance
Manufactured at our ISO 9001:2015 certified plant in Faridabad, India. Designed and tested to IEC 60034 — performance and rating to IEC 60034-1, IP64 enclosure to IEC 60034-5, mounting designations to IEC 60034-7, and Class H insulation to IEC 60085.
Every motor is individually tested before dispatch, not batch-sampled: winding resistance, insulation resistance, high-voltage withstand, back-EMF constant, no-load and loaded run, and temperature rise. Test reports are available on request.

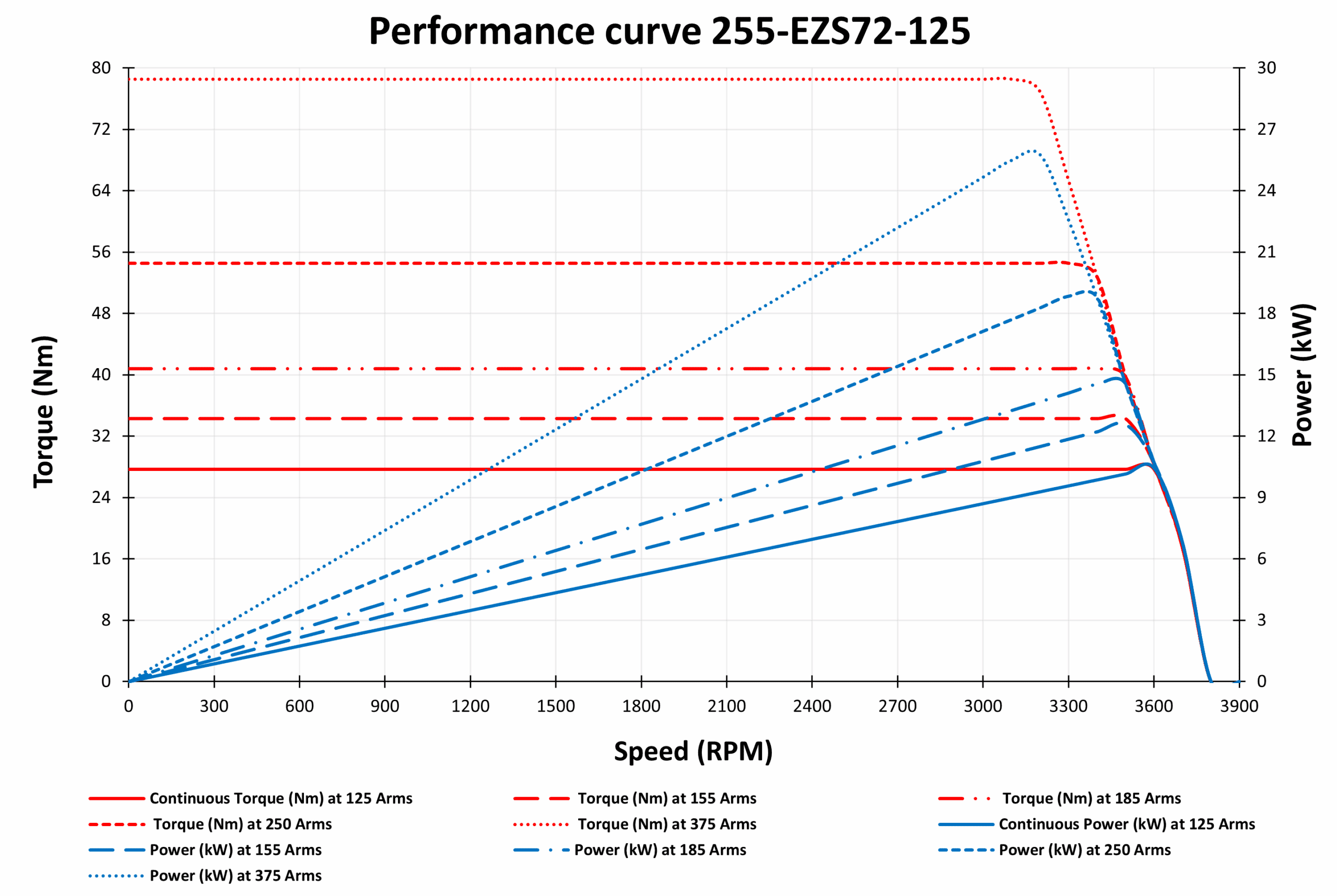

Performance Curves
Where this motor is used
- Centrifugal pumps and blowers, where delivered output rises steeply with shaft speed
- Compressor and vacuum pump drives on 72 V mobile and industrial equipment
- Geared traction where the reduction stage already exists
- Light, quick-accelerating axes where motor mass is a design constraint
Applications
Related ratings
Next step down: 255-FES72-125 at 9.8 kW, next step up: 255-FES72-160 at 11.0 kW. Every 72 V model at this rating is compared on the 72V 10kW motors page. See also the 72V motor guide and the full PMSM range from 24 V to 565 V.
